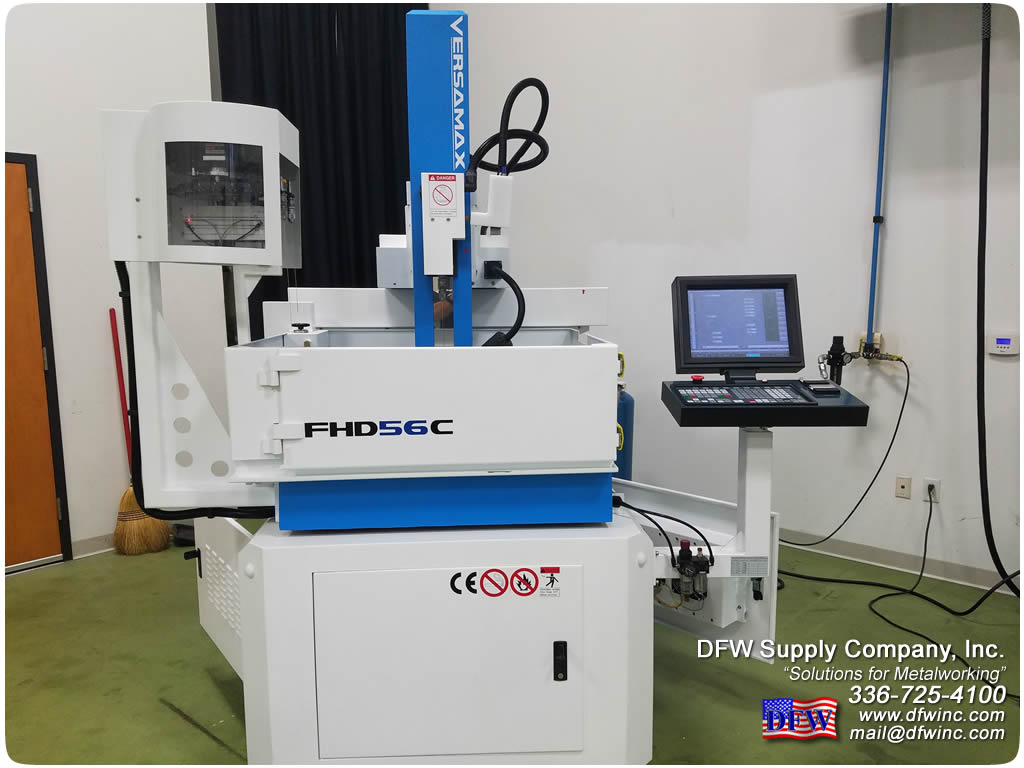

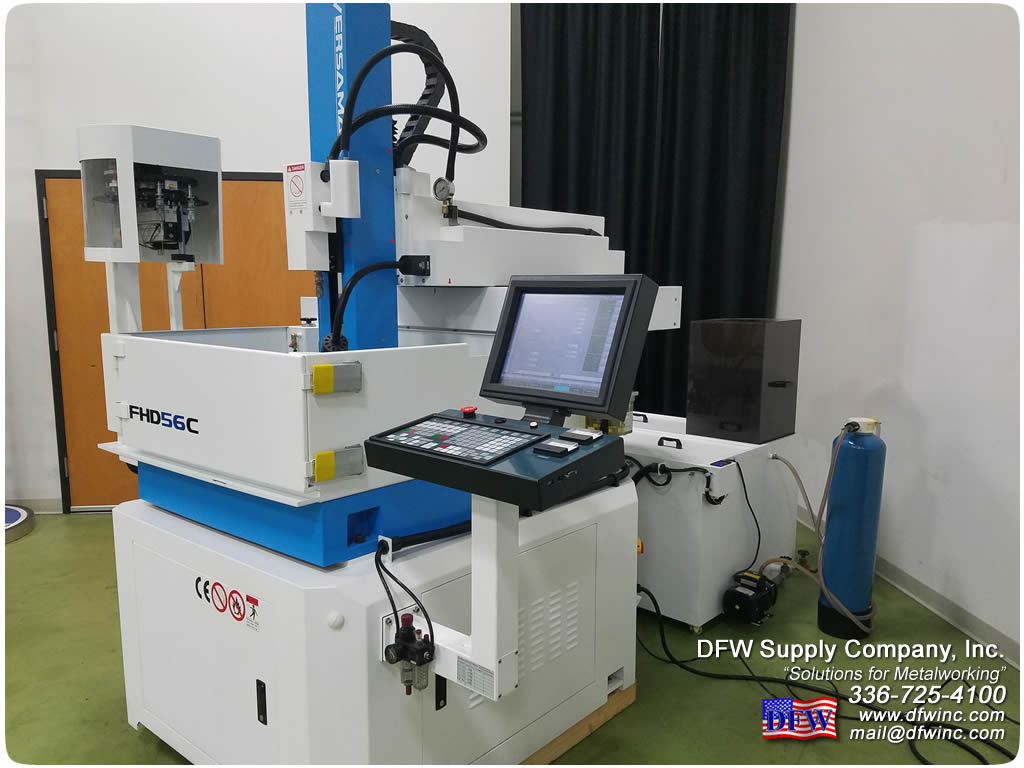

2015 Versamax FHD56C Submersible CNC Small Hole EDM
Versamax FHD56C FEATURES INCLUDE:
* 30 Amp Power Supply
* Fully submerged operation
* Integrated D.I system

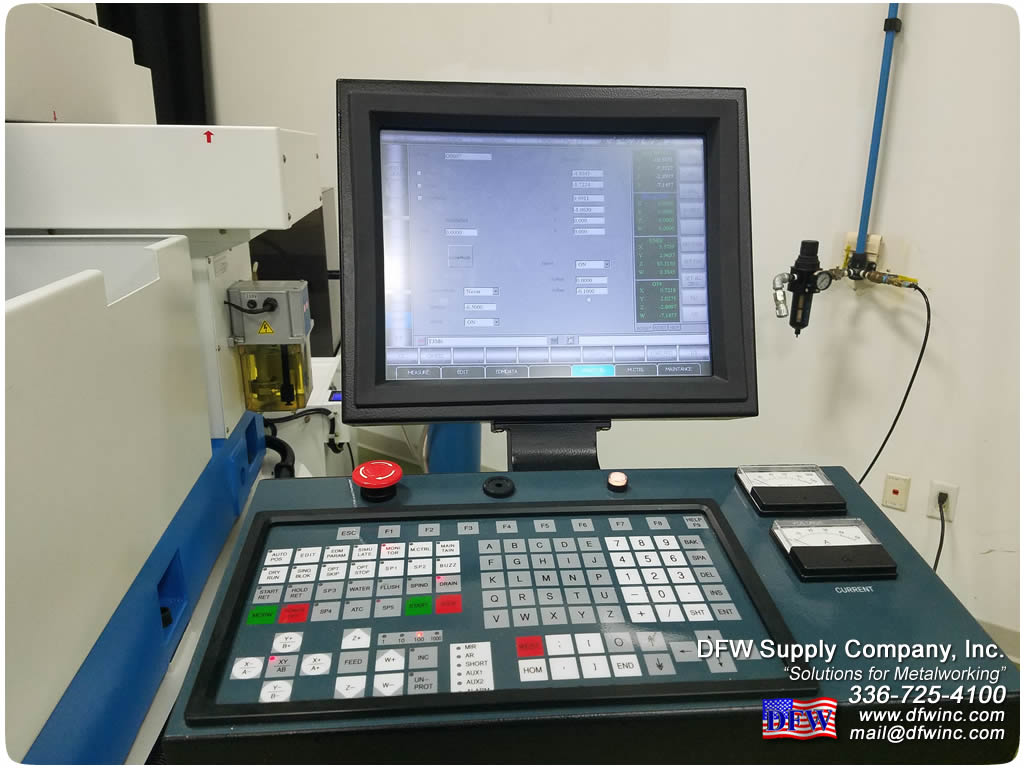

* 15” Color Touch Screen
* Glass Scales on X, Y, & Z axes
* Halogen work light
* Multi-Tap line transformer
* Tool box
* 2 Position AGC

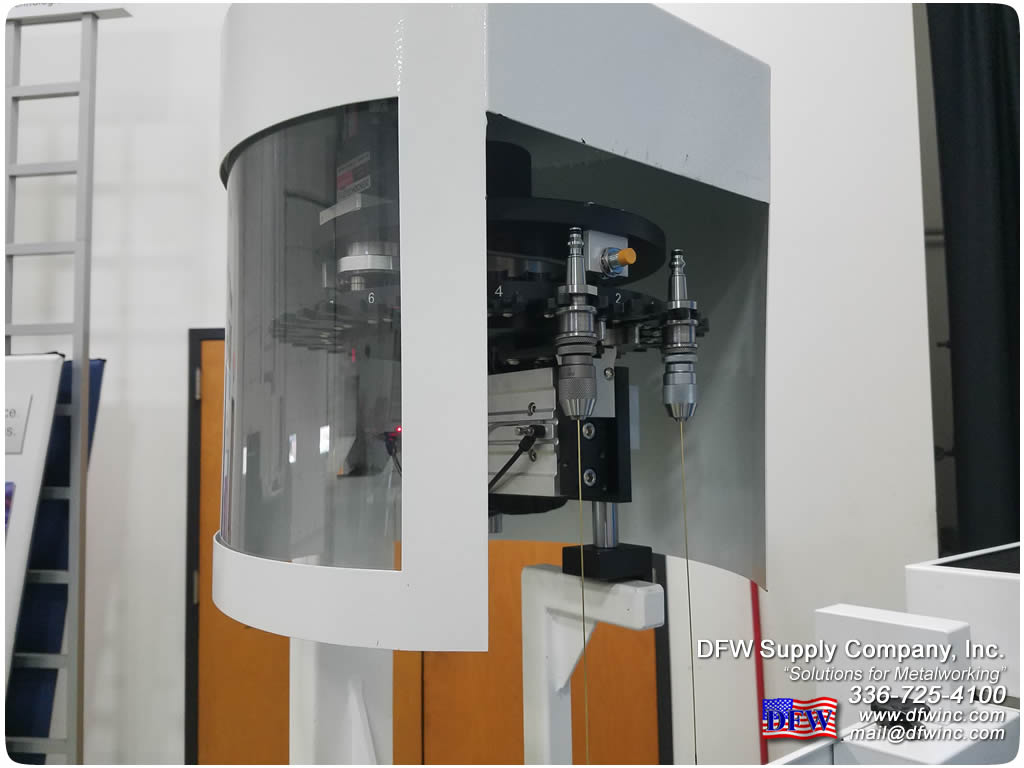

* 18 Position ATC
SPECIFICATIONS INCLUDE:
* X, Y & Z Axes Travel. . . . . . . . . . . . . . .23.6” x 19.7” x 17.7”
* W-axis Travel . . . . . . . . . . . . . . . . . .11.5”
* Max Work piece Dimensions . . . . . . . . . . . 31.5” x 29.5”
* Maximum Workpiece Weight . . . . . . . . . . . . 2866lbs
* Electrode size range . . . . . . . . . . . . . . 0.3mm - 3.0mm
